Custom Solar Marine Lanterns Solar Powered Boat Navigation Lights With AIS

Product Categories
Chengdu Dixin Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

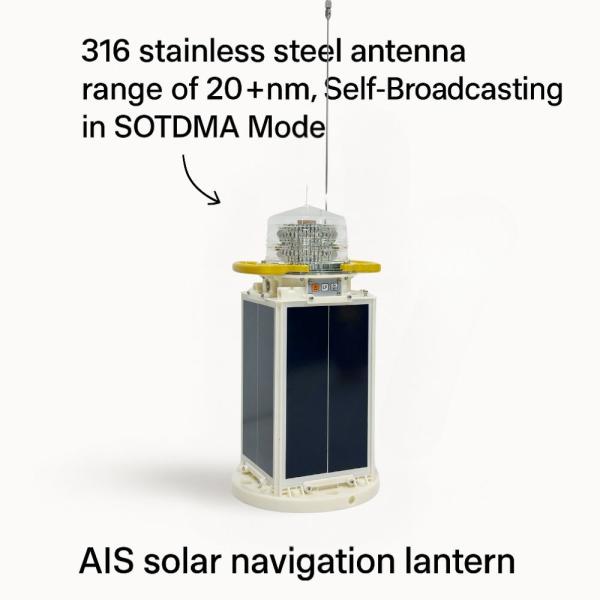

Custom Solar Marine Lanterns Solar Powered Boat Navigation Lights With AIS

  • 1
  • 2
  • 3

Brand Name : Dexon

Model Number : SC160FL

Certification : CE, ISO9001, IALA

Place of Origin : Chengdu

MOQ : 1

Price : 2500-3000

Payment Terms : D/A,D/P,T/T,Western Union,MoneyGram,L/C

Supply Ability : 10000/month

Delivery Time : 3～10 days

Packaging Details : cartons/pallets

Material : Acrylic lens,ABS+PC base

Flash Mode : 256 types(selectable)

Light Color : Red/Green/Yellow/White/Blue

Visible Range : 5–8 nautical miles

Ingress Protection : IP68

Operating Temperature : -35°C to +60°C

Contact Now

Designed for smart marine operations, and it supports AIS message types 6, 8, 21, and optionally 7, 12, 20, and 25- makes it highly adaptable to modern port and VTS systems.
It comes with AIS-ready options, both built-in and external, and supports SOTDMA, FATDMA and RATDMA protocols.
Fast and flexible setup is made possible through RS232 interface or simple button configuration.
Perfect for AIS AtoN deployments across ports, canals, and critical navigation zones.

Custom Solar Marine Lanterns Solar Powered Boat Navigation Lights With AIS

Core advantages

  1. Supports AIS messages 6, 8, 21, and more for seamless integration with modern VTS and port systems.
  2. Compatible with SOTDMA, FATDMA, and RATDMA to ensure flexible AIS AtoN deployment.
  3. Offers built-in or external AIS options to suit various installation requirements.
  4. Quick configuration via RS232 or one-button setup simplifies on-site deployment.
  5. Ideal for ports, canals, and critical navigation zones requiring reliable signal marking.

Product details

Custom Solar Marine Lanterns Solar Powered Boat Navigation Lights With AIS

Technical specification

Category Specification Details
Main features
Material
Acrylic lens,ABS+PC base
Flash Mode
256 types(selectable)
Light Color
Red/Green/Yellow/White/Blue
Visible Range
5–8 nautical miles
Daylight Threshold
Digital photosensitive, adjustable threshold
Ingress Protection
IP68
Operating Temperature
-35°C to +60°C
Emission Angle
Floating Light ≥8°, Fixed Light ≥2.5°
Working Voltage
DC 10.5V – 14.4V
Parameter Loading
RS232 and onboard button
Solar Panel & Battery
Solar Panel
4*7W, high-efficiency mono-solar panel
Charging Current
Typical 400mA
Battery
LiFePO4 battery, capacity 640Wh
Continuous Operation
≥25 days (without sun)
AIS AtoN
Communication

Default Mode3-SOTDMA ,

(FATDMA / RATDMA / SOTDMA, adjustable)
Operating Frequency
161.975MHz,162.025MHz (±0.5kHz)
Modulation Mode
GMSK / FSK
Transmission Power
1W / 2W / 5W / 6W / 12.5W (configurable)
Average Power Consumption
≤ 1W (continuous working mode),Low power mode ≤0.7W
Message Format
Supports standard AIS Message 21, 6; multiple formats selectable
W/D/K
Net Weight
9.3 kg
Dimensions
Floating Light: 240mm × 240mm × 489mm
Packaging Dimensions
277mm × 281mm × 537mm
Installation
Meets domestic and international installation standards

Drawings

Custom Solar Marine Lanterns Solar Powered Boat Navigation Lights With AIS

Application

  • Floating AtoN Installations
  • Buoys
  • Beacons
  • Harbor Entrances
  • Offshore Platforms

FAQ

1, Which AIS messages are supported?
Compatible with Msg 6, 8, 21 and more, and is prepared for VTS/port integration.
2, What AIS deployment modes are available?
Fully compatible with SOTDMA, FATDMA and RATDMA.
3, Does the configuration process complex?
No, the light can be set up quickly via RS232 or one-button configuration.
4, Can I choose internal or external AIS?
Yes. Both built-in and external AIS options available.
5, What are the size and delivery specifications?
Light weighs 9.3 kg, delivery dimensions: 277 x 281 x 537 mm. Ships in 3–10 days.
